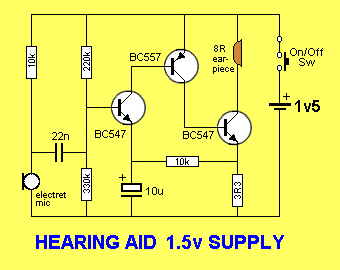

Simple Circuit Diagram of Hearing Aid (Beginner‑Friendly Guide)
A hearing aid circuit is a small audio‑amplifier system that boosts weak sound signals from a microphone and delivers them to an earphone.
The simplest version uses two transistors (BC547/BC557), a microphone, a few capacitors, and a 1.5V battery.
Below is a clear procedural guide with real circuit images from your search results.
Step‑by‑Step Hearing Aid Circuit Guide
The circuit runs on a small 1.5V battery to keep the amplifier compact and safe.
Use a 1.5V AA or button cell battery.
Connect the positive terminal to the microphone bias resistor.
Ensure clean battery contacts for noise‑free operation.
The microphone captures sound and sends a weak audio signal into the amplifier.
Use an electret microphone.
Connect its positive pin through a 10k resistor.
Couple the signal using a 22nF capacitor to the first transistor base.
Build the First Amplifier Stage
The first transistor boosts the tiny microphone signal.
Use BC547 as the first transistor.
Add a 10uF capacitor from collector to the next stage.
Ensure correct transistor pin orientation (C‑B‑E).
Add the Second Amplifier Stage
The second transistor increases the gain enough to drive an earphone.
Use BC557 PNP transistor.
Connect the 10uF coupling capacitor from stage one.
Add a 220k resistor for bias stabilization.
Connect the Earphone Output
The amplified signal is delivered to a small earphone.
Use an 8Ω earphone.
Connect through a 10uF capacitor to block DC.
Ensure polarity is correct for best audio clarity.
A simple switch controls battery power to the circuit.
Place the switch in series with the battery.
Use a small slide or push‑button switch.
Verify the circuit powers on without noise.
Sources:
⭐ Final Thoughts
This simple hearing aid circuit uses only a few components yet provides clear audio amplification.
The images above show real transistor‑based hearing aid schematics, making it easy for beginners to build or study the circuit.
